Ⅰ. Product Introduction
The hanging waterproof board for tunnels is a new type of waterproof material for tunnels developed by our company. It can realize the one-time completion of line hanging construction that a nail can pierce through without drilling a hole, which greatly simplifies the construction difficulty of traditional waterproofing materials in tunnels, improves the quality of laying and Laying efficiency, shortens the construction cycle, greatly reduces the comprehensive cost of project, and has a strong market competitive advantage.
Ⅱ. Product Series

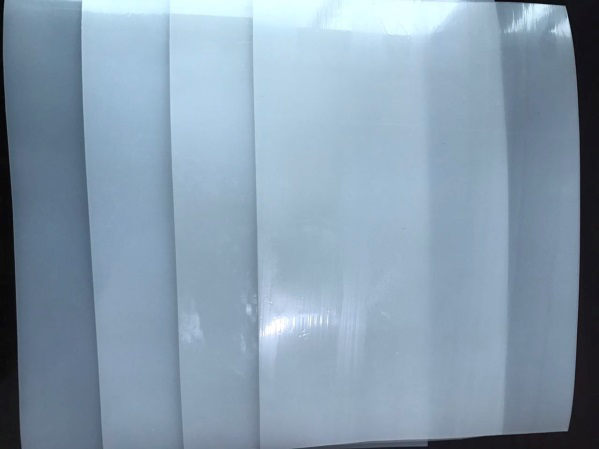

Separate waterproof board: geotextiles and waterproof board are laid in layers.
Composite waterproof board: geotextiles and geomembrane are combined as a whole, and in a way of point-type and strip-type. The edge of products has splicing welds. And geotextiles is equipped with sling, can be laid on the site as a whole and completed in one time.
Ⅲ. Product Specifications
Polyester needled geotextiles : 300-400g/m2.
PE/EVA/ECB/ECD synthetic resin rolls thickness: 0.8, 1.0, 1.2, 1.5, 2.0 mm.
Product width: 2-4m.
Product length: According to customer requirements.
Ⅳ.Technical Performance
Meeting the technical indicators specified in the GB/T18173.1-2012 standard.
Ⅴ.Use Range

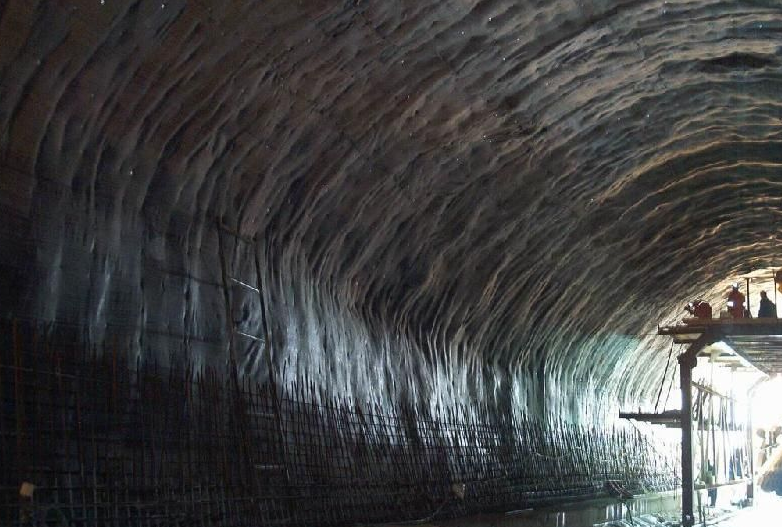

Railway tunnels, road tunnels, subways, industrial and mining, and various municipal underground projects.
Polyvinyl chloride (PVC) waterproof rolls performance indicators
Items | Indicators | |
Breaking tensile strength MPa | Normal temperature ≥ | 10 |
60℃≥ | 4 | |
Broken elongation, % | Normal temperature ≥ | 200 |
-20℃≥ | 15 | |
Breaking strength, KN/m≥ | 40 | |
Impervious to water, no leakage for 30min | 0.3MPa | |
Low temperature bending, ℃ ≤ | -20 | |
Hot air aging (80°C × 168h) | Retention rate of breaking tensile strength, %≥ | 80 |
Retention rate of broken elongation, %≥ | 70 | |
100% elongation appearance | No crack | |
Technical indicators of PE/EVA/ECB waterproof rolls
Items | Resins | ||
EVA、PE | ECB | ||
JS2 | JS3 | ||
Breaking tensile strength | Normal temperature ≥ | 16 | 14 |
60℃≥ | 6 | 5 | |
Broken elongation | Normal temperature ≥ | 550 | 500 |
-20℃≥ | 350 | 300 | |
Breaking strength, KN/m | ≥ | 60 | 60 |
Impervious to water, no leakage for 30min | 0.3MPa | 0.3MPa | |
Low temperature bending, ℃ | -35 | -35 | |
Heating expansion and contraction, mm | Expansion < | 2 | 2 |
Contraction < | 6 | 6 | |
Hot air aging (80°C × 168h) | Retention rate of breaking tensile strength, %, ≥ | 80 | 80 |
Retention rate of broken elongation, %, ≥ | 70 | 70 | |
100%伸长率外观 100% elongation appearance | No crack | No crack | |
Alkali resistance [10% Ca(OH)2 normal temperature × 168h] | Retention rate of breaking tensile strength, %, ≥ | 80 | 80 |
Retention rate of broken elongation, %, ≥ | 90 | 90 | |
Ozone aging (40 ° C × 168h) | Elongation 40%, 500pphm | - | - |
Elongation 20%, 500pphm | - | - | |
Elongation 20%, 200pphm | No crack | No crack | |
Elongation 20%, 100pphm | - | - | |
Man-made weathering | Retention rate of breaking tensile strength, %, ≥ | 80 | 80 |
Retention rate of broken tensile strength, %, ≥ | 70 | 70 | |
100%伸长率外观 100% elongation appearance | No crack | No crack | |
Adhesion | No treatment | In the case of the deviation from the base line, less than 5mm of stripping length,and no harmful deviation or abnormal point | |
Heat treatment | |||
Alkali treatment | |||
Railway standard: TB/ T3360.1-2014
No. | Item | Indicator | |||
EVA | ECB | PE | |||
1 | Tensile property | （MPa） Breaking tensile strength (MPa) | ≥18 | ≥17 | ≥18 |
Broken elongation (%) | ≥650 | ≥600 | ≥650 | ||
2 | Tear strength (kN/m) | ≥100 | ≥95 | ≥95 | |
3 | Impervious to water (0.3Mpa/24h) | 无渗漏 No leakage | 无渗漏 No leakage | 无渗漏 No leakage | |
4 | Low temperature bending (-35°C) | 无裂纹 No crack | 无裂纹 No crack | 无裂纹\ No crack | |
5 | Heating expansion and contraction | Expansion (mm) | ≤2 | ≤2 | ≤2 |
Contraction (mm) | ≤6 | ≤6 | ≤6 | ||
6 | Hot air aging (80°C × 168h) | （MPa） Breaking tensile strength (MPa) | ≥16 | ≥14 | ≥15 |
Broken elongation (%) | ≥600 | ≥550 | ≥550 | ||
7 | Alkali resistance [saturated Ca(OH)2 solution × 168h] | Breaking tensile strength (MPa) | ≥17 | ≥16 | ≥16 |
Broken elongation (%) | ≥600 | ≥600 | ≥550 | ||
8 | Man-made weathering | Retention rate of breaking tensile strength (%) | ≥80 | ≥80 | ≥80 |
Retention rate of broken elongation (%) | ≥70 | ≥70 | ≥70 | ||
9 | Piercing Strength | Thickness 1.5mm (N) | ≥300 | ≥300 | ≥300 |
Thickness 2.0mm (N) | ≥400 | ≥400 | ≥400 | ||
Thickness 2.5mm (N) | ≥500 | ≥500 | ≥500 | ||
Thickness 3.0mm (N) | ≥600 | ≥600 | ≥600 | ||
