Ⅰ.Product Introduction
。

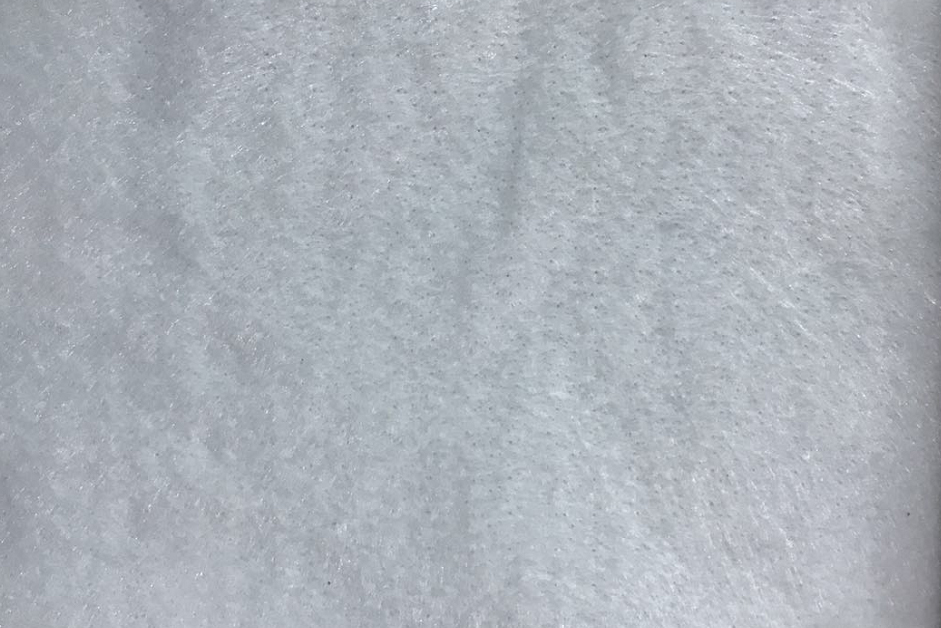

Polyester filament spunbonded needle-punched geotextiles is a synthetic material used in the civil engineering. It is made by web formation and consolidation of polyester filament, and its fibers are arranged in a three-dimensional structure. In addition to good mechanical properties, it also has good vertical and horizontal drainage performance and good elongation properties, as well as high chemical stabilization, such as bio-resistance, acid-base resistance and aging resistance, etc. Meanwhile, it also has a wide aperture range, a circuitous pore distribution, excellent permeability and filtration performance.
Ⅱ.Production Function
Reverse-filtration function, drainage function, isolation function, reinforcement function, anti-seepage function.
Ⅲ.Product Specifications and Technical Indicators
标Specifications and indicators tems | F100 | F150 | F200 | F250 | F300 | F350 | F400 | F450 | F500 | F600 | F800 | Remarks |
100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 800 | ||
Mass 2) deviation per unit area (%) | -6 | -6 | -6 | -5 | -5 | -5 | -5 | -5 | -4 | -4 | -4 | |
Thickness mm (≥) | 0.8 | 1.2 | 1.6 | 1.9 | 2.2 | 2.5 | 2.8 | 3.1 | 3.4 | 4.2 | 5.5 | |
） Width 2) Deviation (%) | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | -0.5 | |
Breaking strength (KN/m≥) | 4.5 | 7.5 | 10.0 | 12.5 | 15.0 | 17.5 | 20.5 | 22.5 | 25.0 | 30.0 | 40.0 | longitudinal and transverse |
Breaking elongation (%) | 40-80 | 40-80 | 40-80 | 40-80 | 40-80 | 40-80 | 40-80 | 40-80 | 40-80 | 40-80 | 40-80 | longitudinal and transverse |
CBR bursting strength (KN ≥) | 0.8 | 1.4 | 1.8 | 2.2 | 2.6 | 3.0 | 3.5 | 4.0 | 4.7 | 5.5 | 7.0 | |
Equivalent aperture (O99mm) | 0.07-0.2 | |||||||||||
垂 Vertical permeability coefficient (CM/S) | K×（10-1~10-3） | K=1.0~9.9 | ||||||||||
Tearing strength 3) (KN ≥) | 0.14 | 0.21 | 0.28 | 0.35 | 0.42 | 0.49 | 0.56 | 0.63 | 0.70 | 0.82 | 1.10 | 纵 longitudinal and transverse |
Raw materials and physical properties | 100% polyester filament non-woven injection | |||||||||||
） Available width (m) | 1-6 | |||||||||||
Resistance to chemical corrosion | There is no effect in the range of pH 2-12 | |||||||||||
