Ⅰ.Product Introduction

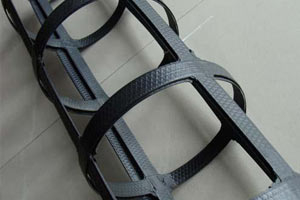

The steel-plastic composite geogrid is made of high-strength steel wire (or other fiber). The high-strength steel wire is specially treated with polyethylene (PE) and other additives, that is, they are extruded into a composite high-strength tensile strip with rough embossing surface, namely a high-strength reinforced geobelt. The single belts are established according to a certain distance in the longitudinal or transverse direction or arranged by clamping, and then they are welded by a fusion welding technique with capacity of special strengthening bonding to form a reinforced geogrid.
Ⅱ.Technical Characteristics of the Product
1. The steel-plastic composite geogrid has the characteristics of high strength and small deformation.
2. The steel-plastic composite geogrid has the characteristics of small creep.
3, The steel-plastic composite geogrid resists corrosion, and has a long life. The steel-plastic geogrid is made of plastic material as a protective layer, supplemented by various additives to make it endure age, resist oxidation and corrosion in harsh environments such as acid, alkali and salt. Therefore, the steel-plastic geogrid can meet the needs of various permanent projects for more than 100 years, and has excellent performance and good dimensional stability.
4. The steel-plastic composite geogrid has the characteristics of convenient construction, short construction cycle and low cost. The laying, lap jointing and positioning of the steel-plastic geogrid are easy and the laying is smooth. So it can avoid overlap and crossover, which can effectively shorten the construction cycle and save 10%-50% of the project cost.
Ⅲ.Engineering Application
The soft soil foundation reinforcement, and anti-cracking projects of retaining walls and pavement in the field of roads, railways, bridge abutment, approach roads, docks, revetments, dams, slag yards, etc.
Ⅳ.Product Specifications and Technical Indicators
1.Specifications and Technical Indicators of High-strength Steel-plastic Bidirectional (Longitudinal and Transverse) Geogrid | |||||
Specifications Items | TGDG30-30 | TGDG50-50 | TGDG80-80 | TGDG100-100 | TGDG120-120 |
Ultimate bidirectional tensile strength （KN/m≥） | 30 | 50 | 80 | 100 | 120 |
Ultimate bidirectional stretch rate | 3 | 3 | 3 | 3 | 3 |
Elongation at 1% of tensile strength（KN/m≥） | 23 | 36 | 63 | 81 | 98 |
2.Specifications and Technical Indicators of High-strength Steel-plastic Unidirectional (Longitudinal) Ggeogrid | |||||||
Specifications Items | TGDG30 | TGDG50 | TGDG80 | TGDG100 | TGDG120 | TGDG150 | |
Ultimate longitudinal tensile strength （KN/m≥） | 30 | 50 | 80 | 100 | 120 | 150 | |
Ultimate longitudinal stretch rate | 3 | 3 | 3 | 3 | 3 | 3 | |
Elongation at 1% of tensile strength（KN/m≥） | 23 | 38 | 63 | 81 | 98 | 125 | |
