Ⅰ.Product Instruction and the Classification

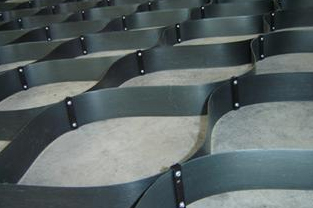

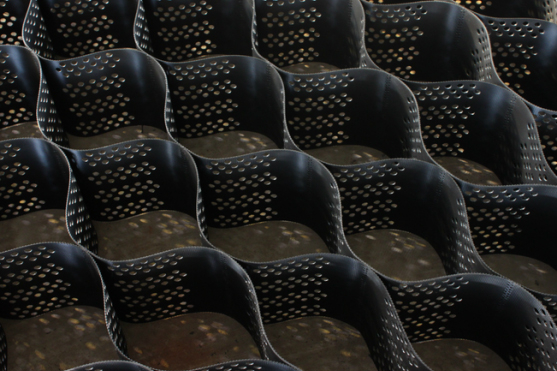

1. The plastic geocell is a new type of synthetic material for civil engineering. It uses a polymer board as material. This material is connected by a rivet link or welded by ultrasound to form a cell with the three-dimensional net structure. When the cell is used, it is expanded into a net. And then the loose materials such as sands, gravels and mud is filled into it to forms a composite material with a monolithic structure. The board can be perforated or printed according to customer requirements to enhance its lateral water permeability, and the friction and bonding force with the foundation material.
2. The steel-reinforced geocell is made of high-strength thermoplastic boards. The boards are connected and woven by using double-headed inserts. The tensile strength of ribs is consistent with the tensile strength of the nodes, forming a monolithic geocell so as to maximize the effect of the three-dimensional reinforcement for the cell.
3. The hot-melt monolithic geocells are made of strip polymer boards. The boards are arranged side by side, and the adjacent boards connected by means of melt injection to form the geocell with high node strength. The cell has higher node strength, higher board strength, and higher production efficiency. The product is an ideal replacement for the ordinary geocell at present.
Ⅱ.Product Specifications
TGLG5、TGLG8、TGLG10、TGLG15、TGLG20（cm）
TGLG5、TGLG8、TGLG10、TGLG15、TGLG20（cm）
Ⅲ.Product Characteristics
1. The product can be stretched freely and can be folded when transporting. It can be stretched into a net shape during construction. The loose materials such as dirt, stone and concrete are filled into it to form a structure with strong lateral limitation and large rigidity.
2. The product has light weight and stable chemical properties, and resist wear, photooxidation aging, acidity and alkalinity, and is suitable for different soils, deserts and other soil conditions;
3. The product has functions, including the higher lateral restraint, anti-slip, anti-deformation, and effectively enhancing the bearing capacity of the roadbed and dispersing load;
4. The product can change the height, the welding distance and other geometric dimensions of the geocell to meet different engineering needs;
5. The product is expanded flexibly; its transport volume is small; it is connected conveniently; and it can fasten construction speed.
Ⅳ.Application Range
The product is widely used in the reinforcement of soft soil foundations, steep slope protection, and foundation reinforcement projects such as highways, railways, airports, and docks, etc. It is especially suitable for weathered forests, deserts and marshes.
Ⅴ.Implementation Standards of the Product
GB/T19274-2003 Synthetic Materials for Civil Engineering: Plastic Geocells
JT/T516-2004 Synthetic Materials for Civil Engineering for Highway Engineering: Geocells
